GOXS-BI5303-20D/BI3503-20D

FIBER, GPON-EPON, OPTICAL TRANSCEIVERS

GOXS-BI5303-20D/BI3503-20D

Description

Dual data-rate of 155Mbps/125Mbps operation
1550nm FP laser and PIN photo detector for 20km transmission
Compliant with SFP MSA and SFF-8472 with single LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C

Categories: FIBER, GPON-EPON, OPTICAL TRANSCEIVERS

Description
Reviews (0)

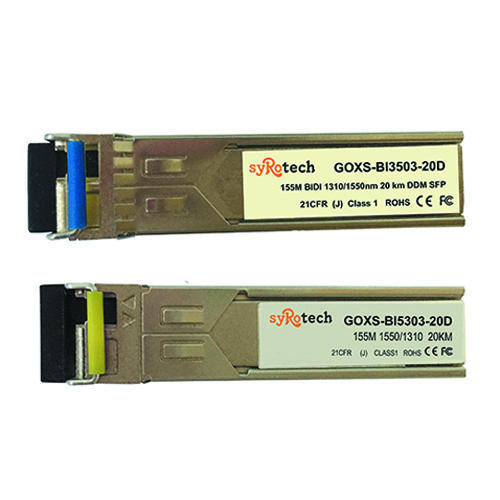

GOXS-BI5303-20D/BI3503-20D

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
125Mbps/155Mbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
